Orion 8 / 9
Frequency |
88 | 90 | 92 | 94 | 96 |
98 | 100 | 102 | 104 | 107 |
(MHz) |
Gain |
13.6 | 13.7 | 13.7 | 13.8 | 13.9 |
13.7 | 13.7 | 13.7 | 13.6 | 13.6 |
(dB) |
Acceptance angle | 45 Deg |
Height | 33" |
Front to Back Ratio (98MHz) | 25.2 dB |
Width | 68"(max.)
|
Windload @ 100mph | 30 lbs |
Length | 74" |
Weight | 4.2 kilos |
The Orion "8" is now based on the standard frame of our most popular model the Galaxie 17.
it consists of 5 reflector elements a circular dipole and two director elements,
and allows an upgrade path right up to a G26. These models are ideal for smaller chimneys

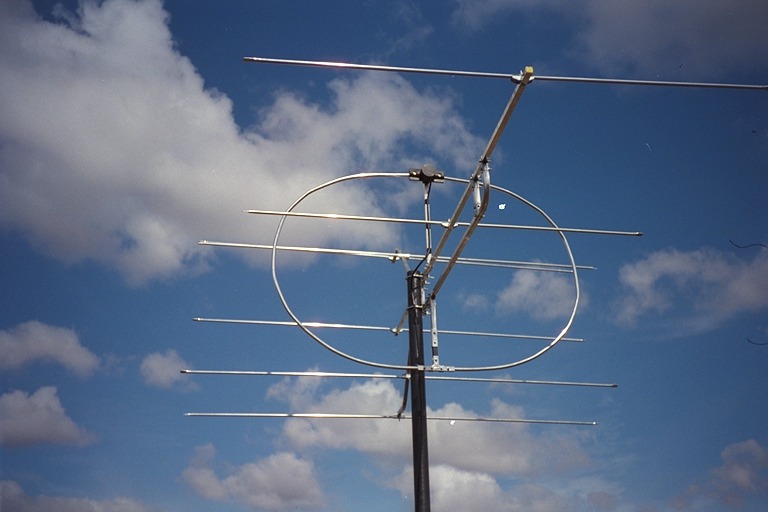

or where extra height is required without the higher windloading of a Full Galaxie model. (pictured above previous version with non-standard frame)
